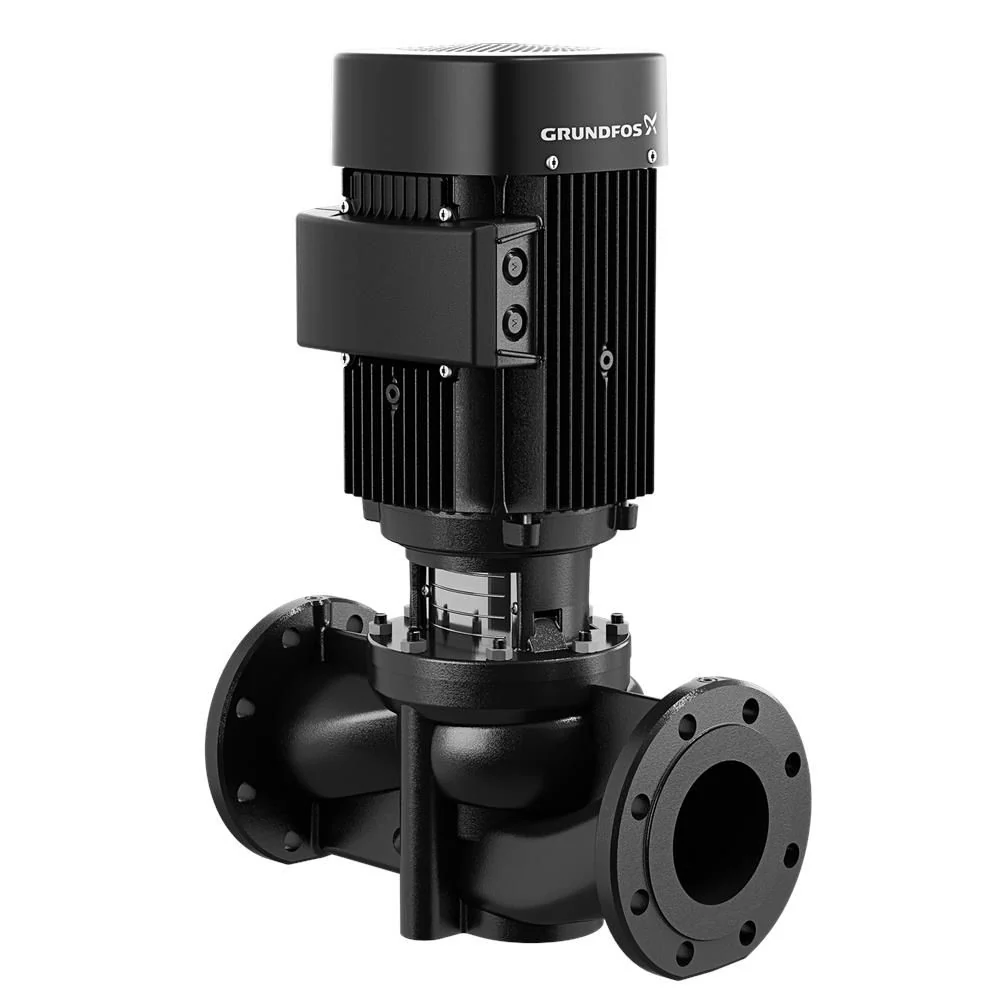

Grundfos TP 32-150/2 B In Line Hot Water Circulator Pump - 415v - Three Phase - 141 Ltr/min
Lead time – Currently 13 working weeks (Last Checked 24/11/23)
The Grundfos TP 32-150/2B In Line Hot Water Circulator Pump is designed for heavy-duty operation. Boasting a three-phase 415V motor and robust bronze or stainless steel housing, it offers 141L/min maximum flow rate for efficient heating and cooling. It features a reliable mechanical shaft seal for long-term performance.
| SKU | 98154622 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5711490581485 |
| Weight | 25.2 Kg |

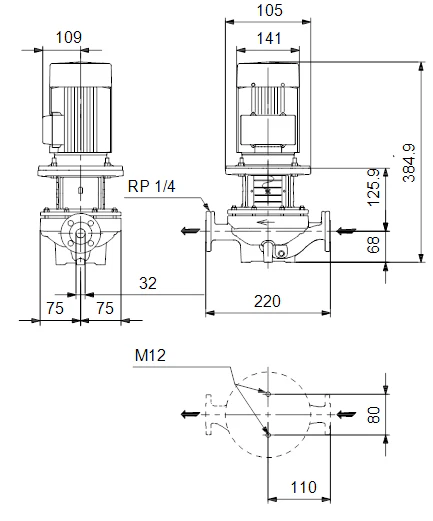

| Dimensions | 385mm (h) x 220mm (w) x 150mm (d) |
| Connection Type | 32mm Flanged |
| Motor Size (kW/W) | 0.37 kW |
| Full Load Current (FLC) | 1.00 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2890rpm |
| Max Flow | 13m3/hr |
| Max Head | 12m |
| Max Temperature | 120 degrees C |
| Material | Bronze |
| Impeller Material | Stainless Steel |
Lead time – Currently 13 working weeks (Last Checked 24/11/23)
The Grundfos TP 32-150/2B In Line Hot Water Circulator Pump is designed for heavy-duty operation. Boasting a three-phase 415V motor and robust bronze or stainless steel housing, it offers 141L/min maximum flow rate for efficient heating and cooling. It features a reliable mechanical shaft seal for long-term performance.
| SKU | 98154622 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5711490581485 |
| Weight | 25.2 Kg |
| Dimensions | 385mm (h) x 220mm (w) x 150mm (d) |
| Connection Type | 32mm Flanged |
| Motor Size (kW/W) | 0.37 kW |
| Full Load Current (FLC) | 1.00 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2890rpm |
| Max Flow | 13m3/hr |
| Max Head | 12m |
| Max Temperature | 120 degrees C |
| Material | Bronze |
| Impeller Material | Stainless Steel |
Description
Lead time – Currently 13 working weeks (Last Checked 24/11/23)
The Grundfos TP 32-150/2B In Line Hot Water Circulator Pump is designed for heavy-duty operation. Boasting a three-phase 415V motor and robust bronze or stainless steel housing, it offers 141L/min maximum flow rate for efficient heating and cooling. It features a reliable mechanical shaft seal for long-term performance.
| SKU | 98154622 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5711490581485 |
| Weight | 25.2 Kg |
| Dimensions | 385mm (h) x 220mm (w) x 150mm (d) |
| Connection Type | 32mm Flanged |
| Motor Size (kW/W) | 0.37 kW |
| Full Load Current (FLC) | 1.00 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2890rpm |
| Max Flow | 13m3/hr |
| Max Head | 12m |
| Max Temperature | 120 degrees C |
| Material | Bronze |
| Impeller Material | Stainless Steel |
