Flamco Airfix P DHW exp.ves. 750/2,7[8bar] 100°C

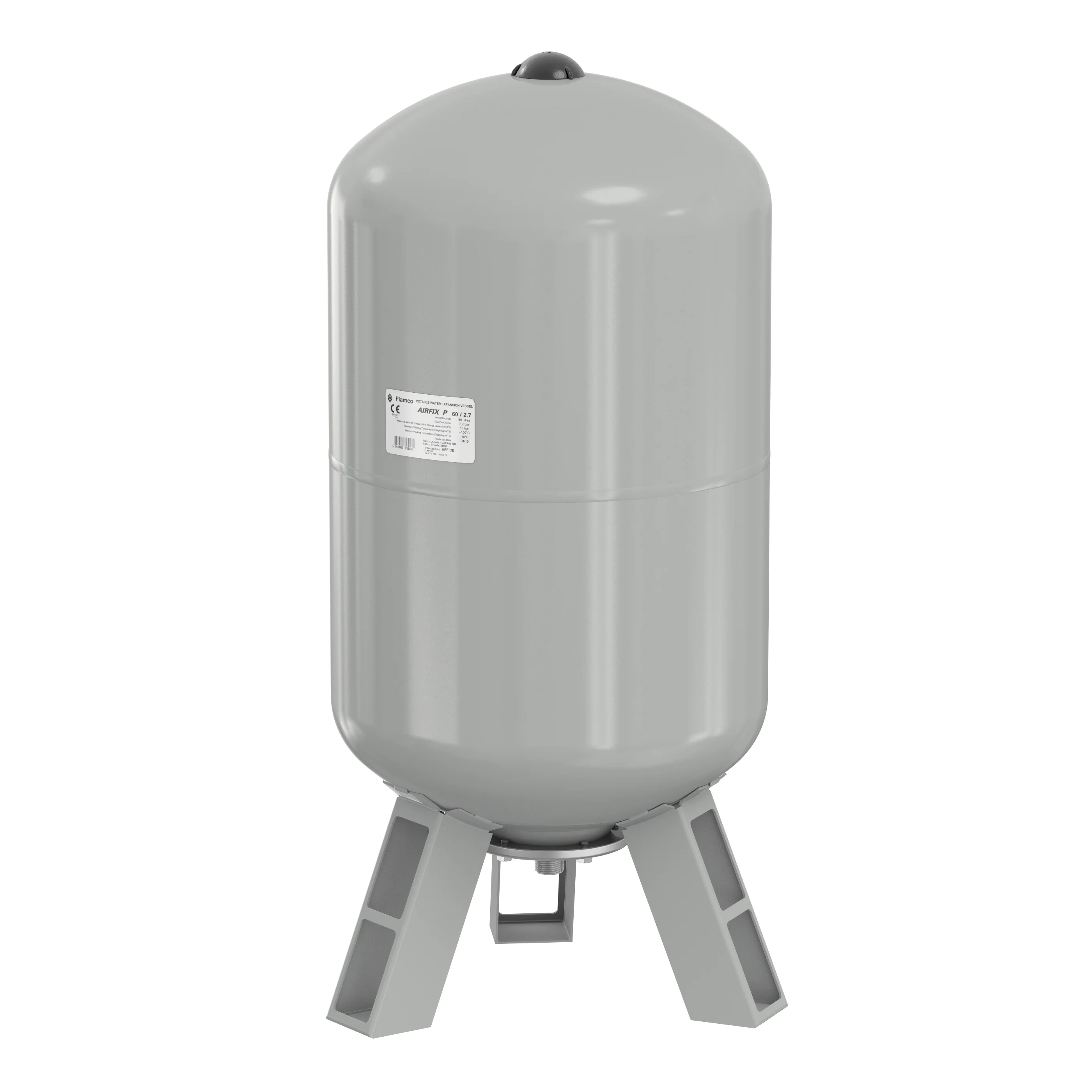

Product image 1

Flamco Airfix P DHW exp.ves. 750/2,7[8bar] 100°C

Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems.

Technical Specifications

  • Min./ max. working temperature (bladder): -10 / 100 °C.
  • Colour: Coated aluminium (RAL 9006).
  • With feet.
Manuals

Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems.

Technical Specifications

  • Min./ max. working temperature (bladder): -10 / 100 °C.
  • Colour: Coated aluminium (RAL 9006).
  • With feet.
Manuals
$4,537.46
Flamco Airfix P DHW exp.ves. 750/2,7[8bar] 100°C—
$4,537.46

Description

Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems.

Technical Specifications

  • Min./ max. working temperature (bladder): -10 / 100 °C.
  • Colour: Coated aluminium (RAL 9006).
  • With feet.
Manuals
Installation and operating instruction
Read More - Airfix P 500 - 1000 - Expansion Vessels for Potable Water | Flamco (aalberts-hfc.com)

Type Capacity
[l]		 Pre-
charge
[bar]		 Max. working pressure
[bar]		 Dimensions Connection Bladder Weight
[kg]		 Order
Code
Ø
[mm]		 H.
[mm]
Airfix P - UK  500/2.7 [10bar]  500 2.7 10 750 1600 G 1 1⁄4" M EPDM  86 1 24926
Airfix P - UK  750/2.7 [8bar]  750 2.7  8 800 1820 R 2" EPDM 153 1 24928
Airfix P - UK 1000/2.7 [10bar] 1000 2.7 10 800 2130 R 2 1⁄2" EPDM 183 1 24929
