B328DIV - 3 Port 28mm Diverter Valve

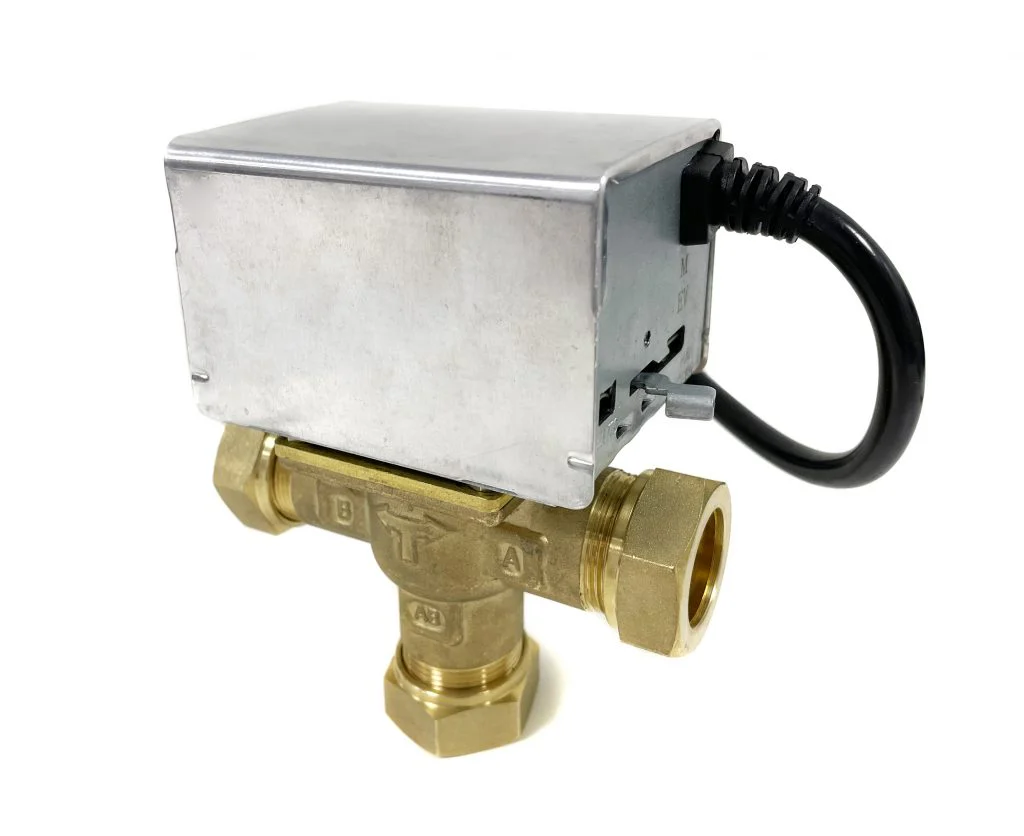

Product image 1
1 / 2

B328DIV - 3 Port 28mm Diverter Valve

Direct from EPH - Delivery Lead time 4-5 Working days :  Live Chat / 01985 850982



3 Port Compression Diverting valve designed for the use in heating systems with both hot water cylinders and heating circuits.

Lead Supplied - 1.2 meter Cable. 3 core. Eath Connection required

Technical Data

PRODUCT CODE CONNECTION TYPE FLOW RATE MAX. CLOSE OFF PRESSURE*
B322DIV 22mm compression 7.1 kvs 1.6 bar (A) 1.2 bar (B)
B328DIV 28mm compression 7.6 kvs 1.2 bar (A) 0.8 bar (B)
Action Type* Power Open, Spring Return
Max Ambient Temp 50˚C
Max Fluid Temp 88˚C



Download Cente

B32_DIV Datasheet

Direct from EPH - Delivery Lead time 4-5 Working days :  Live Chat / 01985 850982



3 Port Compression Diverting valve designed for the use in heating systems with both hot water cylinders and heating circuits.

Lead Supplied - 1.2 meter Cable. 3 core. Eath Connection required

Technical Data

PRODUCT CODE CONNECTION TYPE FLOW RATE MAX. CLOSE OFF PRESSURE*
B322DIV 22mm compression 7.1 kvs 1.6 bar (A) 1.2 bar (B)
B328DIV 28mm compression 7.6 kvs 1.2 bar (A) 0.8 bar (B)
Action Type* Power Open, Spring Return
Max Ambient Temp 50˚C
Max Fluid Temp 88˚C



Download Cente

B32_DIV Datasheet

$143.70
B328DIV - 3 Port 28mm Diverter Valve—
$143.70
