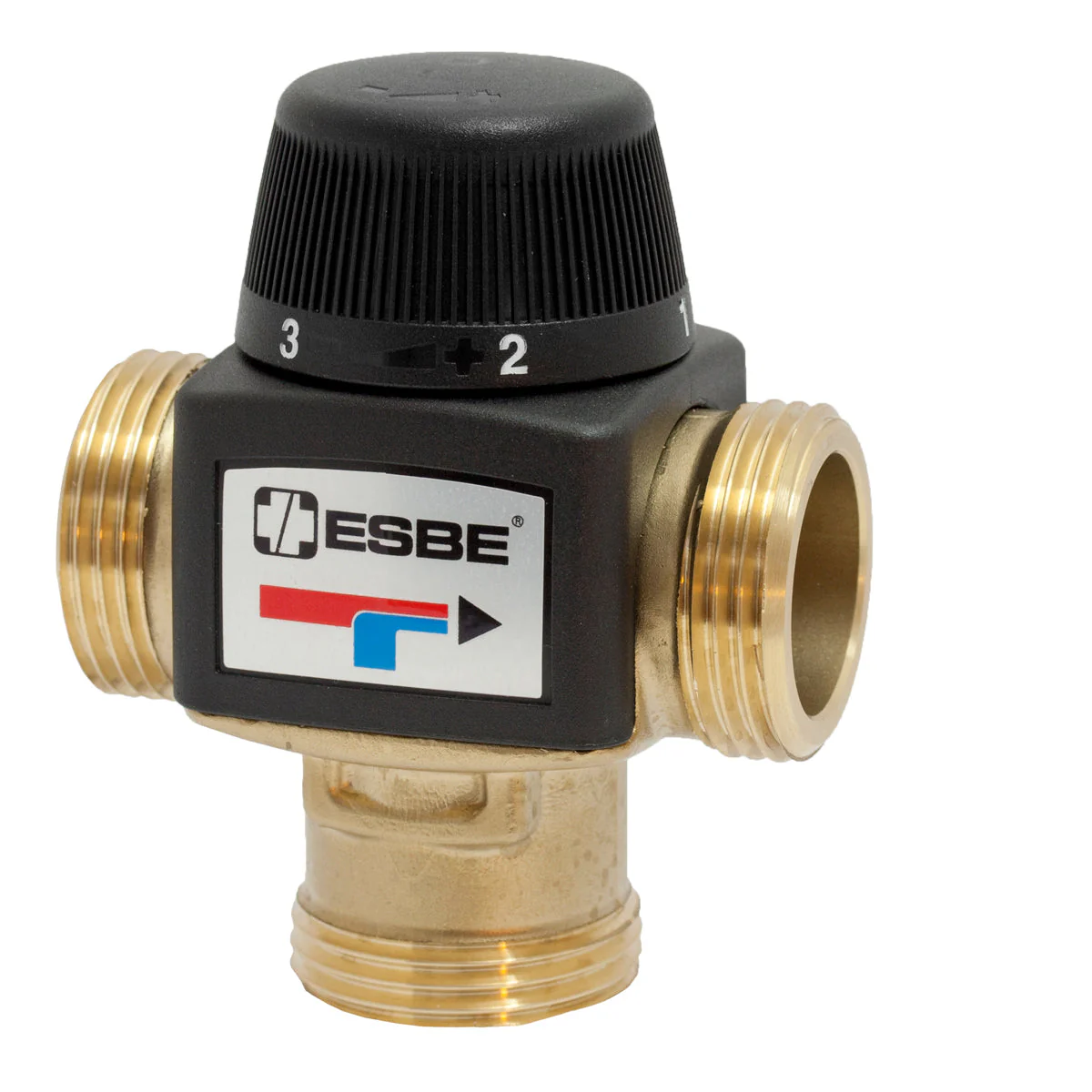

ESBE VTA372 Thermostatic mixing valve
Direct from ESBE - Call to check availability or alternative models: Live Chat / 01985 850982
31200100 - Not in Stock Use - 3120011 which is in stock
ESBE VTA372
- High flow capacity
- Protection against excess temperatures.
The series VTA370 and VTA570 are the number one choice for heating and cooling applications. The valves provide a scald safe function, which is important in order to protect e.g. under floor heating pips and also the floor itself from to uncontrolled rise of temperature.
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
| 31700100 | VTA572 | 10 - 30 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | |
| 31700400 | VTA572 | 10 - 30 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | |
| 31200100 | VTA372 | 20 - 55 | 3,4 | G 1" | 70 | 42 | 52 | 46 | 0,44 | |
| 31702100 | VTA572 | 20 - 55 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | |
| 31702200 | VTA572 | 20 - 55 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | |
| 31200400 | VTA372 | 30 - 70 | 3,4 | G 1" | 70 | 42 | 52 | 46 | 0,48 | Replaces 31105400 |
| 31702500 | VTA572 | 30 - 70 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | Replaces 31700300 |
| 31702600 | VTA572 | 30 - 70 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | Replaces 31700600 |
Direct from ESBE - Call to check availability or alternative models: Live Chat / 01985 850982
31200100 - Not in Stock Use - 3120011 which is in stock
ESBE VTA372
- High flow capacity
- Protection against excess temperatures.
The series VTA370 and VTA570 are the number one choice for heating and cooling applications. The valves provide a scald safe function, which is important in order to protect e.g. under floor heating pips and also the floor itself from to uncontrolled rise of temperature.
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
| 31700100 | VTA572 | 10 - 30 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | |
| 31700400 | VTA572 | 10 - 30 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | |
| 31200100 | VTA372 | 20 - 55 | 3,4 | G 1" | 70 | 42 | 52 | 46 | 0,44 | |
| 31702100 | VTA572 | 20 - 55 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | |
| 31702200 | VTA572 | 20 - 55 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | |
| 31200400 | VTA372 | 30 - 70 | 3,4 | G 1" | 70 | 42 | 52 | 46 | 0,48 | Replaces 31105400 |
| 31702500 | VTA572 | 30 - 70 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | Replaces 31700300 |
| 31702600 | VTA572 | 30 - 70 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | Replaces 31700600 |
Select Title
From $112.33
ESBE VTA372 Thermostatic mixing valve—
$112.33
Description
Direct from ESBE - Call to check availability or alternative models: Live Chat / 01985 850982
31200100 - Not in Stock Use - 3120011 which is in stock
ESBE VTA372
- High flow capacity
- Protection against excess temperatures.
The series VTA370 and VTA570 are the number one choice for heating and cooling applications. The valves provide a scald safe function, which is important in order to protect e.g. under floor heating pips and also the floor itself from to uncontrolled rise of temperature.
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
| 31700100 | VTA572 | 10 - 30 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | |
| 31700400 | VTA572 | 10 - 30 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | |
| 31200100 | VTA372 | 20 - 55 | 3,4 | G 1" | 70 | 42 | 52 | 46 | 0,44 | |
| 31702100 | VTA572 | 20 - 55 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | |
| 31702200 | VTA572 | 20 - 55 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | |
| 31200400 | VTA372 | 30 - 70 | 3,4 | G 1" | 70 | 42 | 52 | 46 | 0,48 | Replaces 31105400 |
| 31702500 | VTA572 | 30 - 70 | 4,5 | G 1" | 84 | 62 | 60 | 56 | 0,86 | Replaces 31700300 |
| 31702600 | VTA572 | 30 - 70 | 4,8 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | Replaces 31700600 |
